Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device

Name: Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device
Brand: Raylaser
Price: 22 USD

China Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device wholesale

Application : LASER CUTTING

Applicable Material : Metal

Condition : New

Laser Type : Fiber Laser

Cutting Area : /

Cutting Speed : 0~100m/min

Graphic Format Supported : AI, PLT, DXF, BMP, Dst, DXP

Cutting Thickness : 0~20mm

CNC or Not : Yes

Cooling Mode : WATER COOLING

Control Software : FSCUT5000B

Place of Origin : Shanghai, China

Brand Name : Raylaser

Laser Source Brand : MAX Raycus

Laser Head Brand : Raytools

Servo Motor Brand : Yaskawa

Guiderail Brand : HIWIN

Control System Brand : FSCUT

Weight (KG) : 1800 KG

Key Selling Points : High Productivity Low Maintenance

Optical Lens Brand : Wavelength

Warranty : 3 years

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other, Advertising Company

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 3 years

Core Components : Pressure vessel, Motor, Gear, Gearbox, Engine, PLC

Mode of Operation : continuous wave

Configuration : 5-axis

Products handled : Tube

Feature : Programmable

Performance : High Performance

Speed : Quickly Fast

Precision : Accuracy

Maintenance : Low Cost

Chuck Type : precise and reliable

Chuck Rated Speed : 120r/min

Price : $22,200.00/sets 1-2 sets

MOQ : 1 set

Contact Now

Products Description

Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device

Specifications
Mode	LP 80 A
Power	1000~3000W
X/Y Axis Accuracy	≤0.03mm
Reprecision Accuracy	≤0.03mm
Tube Diagonal	≤ 80mm
Max Loading Weight	≤ 50KG
Laser Source	Raycus / Max / BWT / Reci
Cutting Head	Raytools / Boci / Ospri
Pipe Length Loading	6m or customize
Cutting Methods	Bevel Cutting Optional

Five Star Quality International Supply Chain with Most Adequate Partners The outstanding Industrial Engineering methods for quality Assembly International Industrial Standard and Enhanced SOP Quality Control and Assurance Tools Shipping Protection for Safe Seafreight

Why Choose Us

Five Star Service The detailed and reliable Installation Recommendations The useful tips and tricks for high Machine Utilization like a pro. The Periodic Maintenance Planning and Checkpoints The Low cost but original quality consumable supply The free consultation for professional TPM and OEE Improvement.

Global Presence and Value Added Services

With global standards for performance and reliability. Each year, Shanghai Raylaser continues to maximize your productivity. Our most important tool in achieving this goal is listening to our customers and responding to teir needs.

Shanghai Raylaser Intelligent Technology Co., Ltd. was established in Shanghai, China, The Core team have been working and denoting in Industrial Laser Application over 16 years.

Shanghai Raylaser's Fiber Laser Cutting Systems range from 1kW to 60kW. Their advanced motion and innovative beam delivery systems are engineered to raise productivity, increase cut quality and reduce operating costs.

Welcome to Shanghai Raylaser, Welcome to the Laser Technology and Solutions.

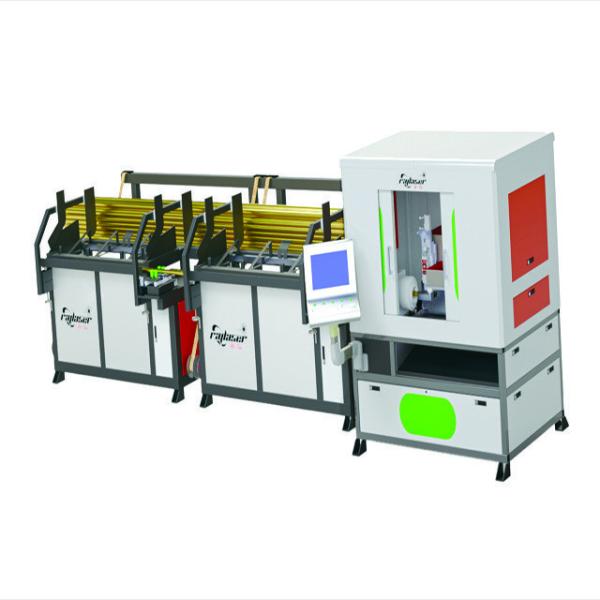

Fiber Laser Cutting Machine for Steel Pipe Tube 1kw 2kw 3kw With Rotary Device Images
